Description
Product Technical Parameters RDN73
| Net weight | Cleaning frequency | Battery parameter |
| 30-40kg（can be customized） | once a day(can be set) | 12.8V |
| Product size | Working speed | Cleaning efficiency |
| 2280*860*210mm（length can be customized） | 12m/min | 99%(dust on the module) |
Power Supply
Battery type：Lithium battery
power supply mode：Automatic charging, no need to change power
Communication Platform
Visualization platform：Equipped with an APP
Communication mode：Local & Remote
Work Environment
Ambient temperature：-25℃ — +60℃
Working humidity：0-95%No condensation
Protection grade：IP65
Safe working wind speed：15m/s（Level 7 wind）
Adaptability
Applicable angle：-25°-+25°
Obstacle crossing capability：Misalignment no less than 30 mm （High and low, front and back）

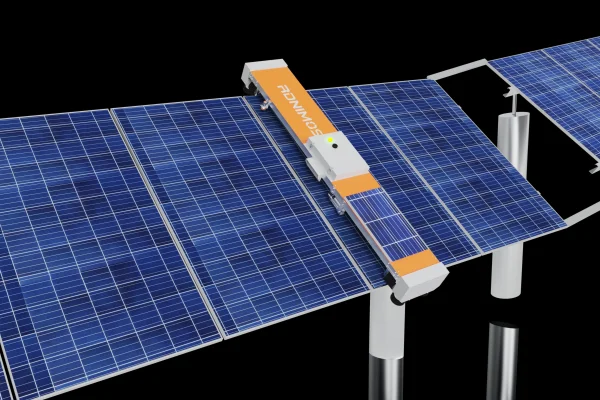

Type of power station：Tracking bracket power station
Module type：Conventional aluminum frame AL frame
Customizable Extensions
Infrared hot spot detection：Detect panel fault
Carriage line change：Cooperate with docking robot to change lines
Product Advantages
-Automatic charging, without change battery
When the power is insufficient, it will automatically return to the charging station for charging. When the power is full, it will automatically continue to sweep.
-Super cleaning capacity
Good dust cleaning effect, which is 8% higher than ordinary cleaning, and the maximum power generation is increased by 26%.
-Large capacity battery (customizable)
Large capacity, high and low temperature resistance, the maximum battery life of up to 2 kilometers.
-Split modular design
Reduce the robot’s self-weight and its movement resistance during cleaning,to lower electricity consumption.
-Dust-proof design
Adopt necessary dust-proof design to prevent dust from depositing in the machine chamber, to ensure the stability of the mechanical structure.
-Intelligent recognition technology
Intelligent recognition of panel, bridge and base station, self-positioning and automatic correction.
