Description

Product Technical Parameters RDN71

Power Supply

Battery type：Lithium iron phosphate battery
Full battery time：Customizable, the maximum length of cleaning is 2 km

Communication Platform

Visualization platform：Equipped with an APP
Communication mode：Local & Remote

Work Environment

Ambient temperature：-25℃ — 60℃
Working humidity：0-95% No condensation
Protection grade：IP65
Safe working wind speed：15m/s（Level 7 wind)

Adaptability

Applicable angle：0-45°
Climbing ability：20°
Obstacle crossing capability：Misalignment no less than 30 mm （High and low, front and back）
Type of power station：Flat ground PV station, Agricultural and solar complementary PV station, Fishery and solar complementary PV station
Module type：Conventional aluminum frame AL frame

Customizable Extensions

Infrared hot spot detection：Detect panel fault
Carriage line change：cooperate with docking robot to change lines
Clean with water：Which is cleaner

Product Advantages

-Self-power all-weather O&M
Self PV modules provide energy self-sufficiency for 24 hours Continuous operation and maintenance
-Super cleaning ability
It has a good dust cleaning effect,which is 8% higher than ordinary cleaning and can increase power generation by up to 26% at most.
-Large-capacity battery (customizable)
Large-capacity& high and low-temperature resistant battery,with a maximum range of up to 2 kilometers.

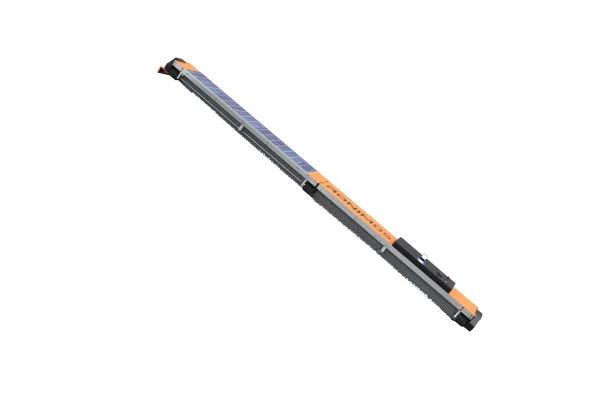

-Split modular design
The upper and lower parts form independent modules, with a split drive and limit design for convenient transportation and installation, flexible connections, and improved equipment adaptability
-Dust-proof design
Adopt necessary dust-proof design to prevent dust from depositing in the machine chamber and ensure thestability of the mechanical structure.
-Intelligent recognition technology
Intelligent recognition of panel, bridge, and base station, autonomous positioning and automatic correction.
