Description

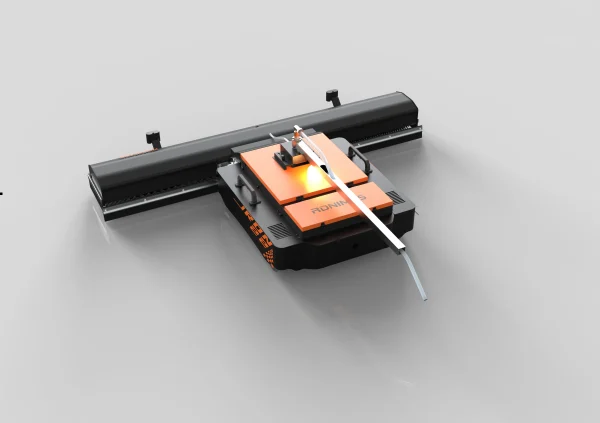

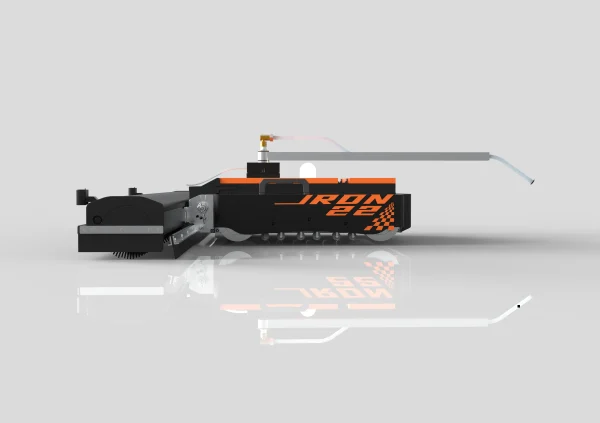

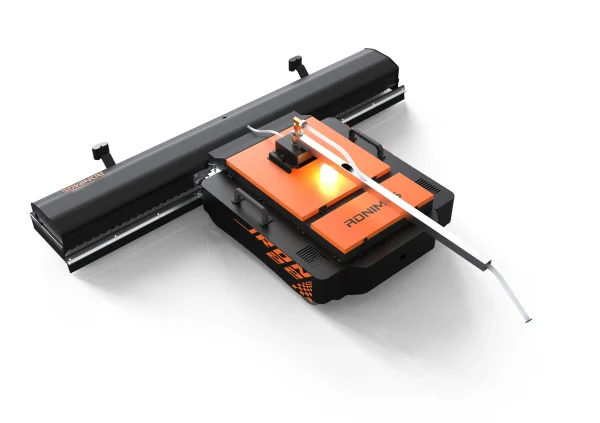

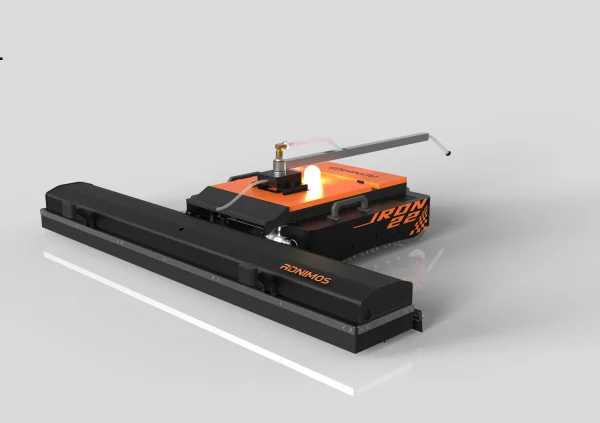

Product Technical Parameters RDN22
| Net weight | Remote control distance | Water yield | Battery parameters |
| 34kg | 150m | 4L/min（Max 8.5L/min） | 25.2V、25.6AH |
| Product size | Rolling brush length | Brush rolling speed | Battery type |
| 840*1223*300mm | 120mm | 330 r/min | Ternary lithium battery |
Power Supply
Full battery life：4h Backup batteries can be replaced quickly
Charging time：5h Battery remove and charging Euro & JPN standards
Cleaning Capacity
Cleaning rate：1000㎡/h、1500KW / Day
Clean pollutant：Floating dust，Cooperate with neutral detergent to clean moderate oil stain
Work Environment
Temperature：Environmental temperature 5-30 ℃、Module temperature5-50 ℃
Protection grade：IP65
Operation time：Morning 、Evening、Cloudy day、Light rain
Working Condition
Applicable angle：0-15°
Type of power station：Flat ground 、 Cement roof、 Color steel tile power station
Module type：Conventional aluminum frame module
Operating Performance
Remote control
Product Advantages
-High efficiency of panel cleaning
Operation by two people, a single robot can clean up to 1.5MW a day
-High panel cleanliness
Flush with large amount of water, the panel cleanliness reaches 100%.
-Lightweight and without damage to panel
Through deep optimization of its own weight and lightweight structural design, its weight is controlled within 34kg. Through third-party testing, long-term operation has no damage to the panel.
-Modular design
The modular design of the equipment, the body, the cleaning head and the battery can be quickly disassembled and installed, which is easy to carry and maintain the equipment.
