Description

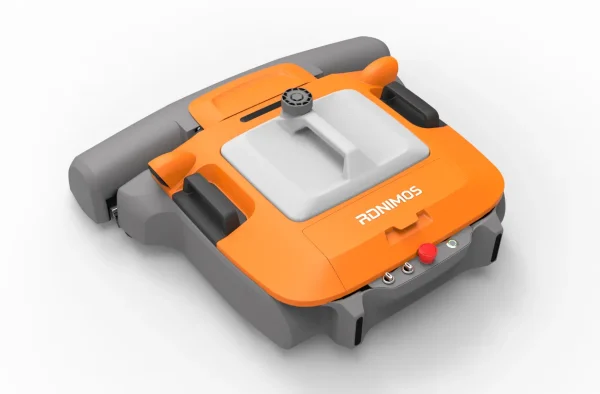

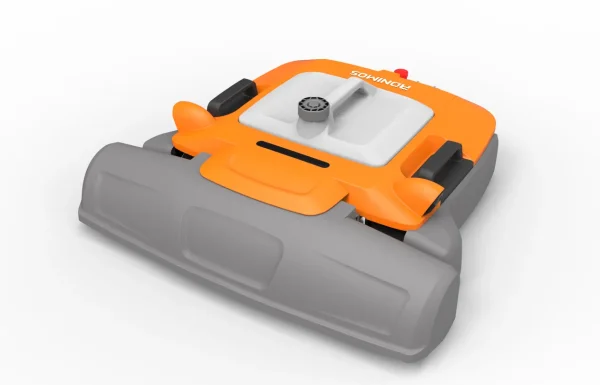

Product Technical Parameters RDN12
Product net weightWater tank capacityBattery Parameters28kg8L25.2V 25.6AHProduct sizeRolling brush lengthBattery type720*720*210mm666mmLithium battery
Power Supply
Full battery time：6h Quickly change Battery
Charging time：5h Battery remove and charging Euro & JPN standards
Water Source
Water adding method：Quick plug and replace water tank Water endurance：Regular 1h Adjust water quantity according to pollution degree
Work Environment
Temperature：0~35℃ Module Temperature 0~50℃
Protection grade：IP55
Operation time：Morning 、Evening、Cloudy day、Light rain
Cleaning Capacity
Cleaning rate：Maximum 300m² / h 350KW / Day
Clean pollutant：Floating dust，Cooperate with neutral detergent to clean moderate oil stain
Manual assistance：≥3 sets/person，To change water tank and battery
Working Condition
Applicable angle：Standard 0~20°、Premium 0~30°
Type of power station：Flat ground 、 Cement roof、 Color steel tile power station
Module：Conventional aluminum frame AL frame
Control Performance
Automatic visual control：Software OTA upgrade、APP（Android、IOS）、Built map to work
Log & faultinformation：Keep sweeping for change water、Remote control assistance、Night work
Product Advantages
-Cleaning path planning for arrays
The robot automatically recognizes he array type and module size, and independently plans the cleaning path to ensure the cleaning effect and operation.
-Intelligent anti-skid and anti-drop technology
The cleaning robot with a combination of structure, sensor, and intelligent control to ensure the stable operation on the smooth slope and the edge of array .The long-term test has no risk of slipping.
-Light weight and without detriment to panels
Total weight is within 28kg by the deep optimization of its ownweight. And the long-term operation without detrimentto panels as the third-party testing.
-Night vision function
Stable cleaning at night by optimizing design with lighting and vision sensor, greatly improving the efficiency of cleaning operations.
-High rate of cleaning
With the intelligent loating cleaning technology and trajectory optimization design to ensure the dust on PV modules panels is stratified and cleaned, and the dust cleaning rate exceeds 98%.
-Modular design
The modular design of the equipment, the fuselage,cleaning head, battery and water tank can be quickly combined and installed, which is convenient for transportation and assembly.
